CSJ-1 Conforming SolderJaw

Introducing SolderJaw CSJ-1

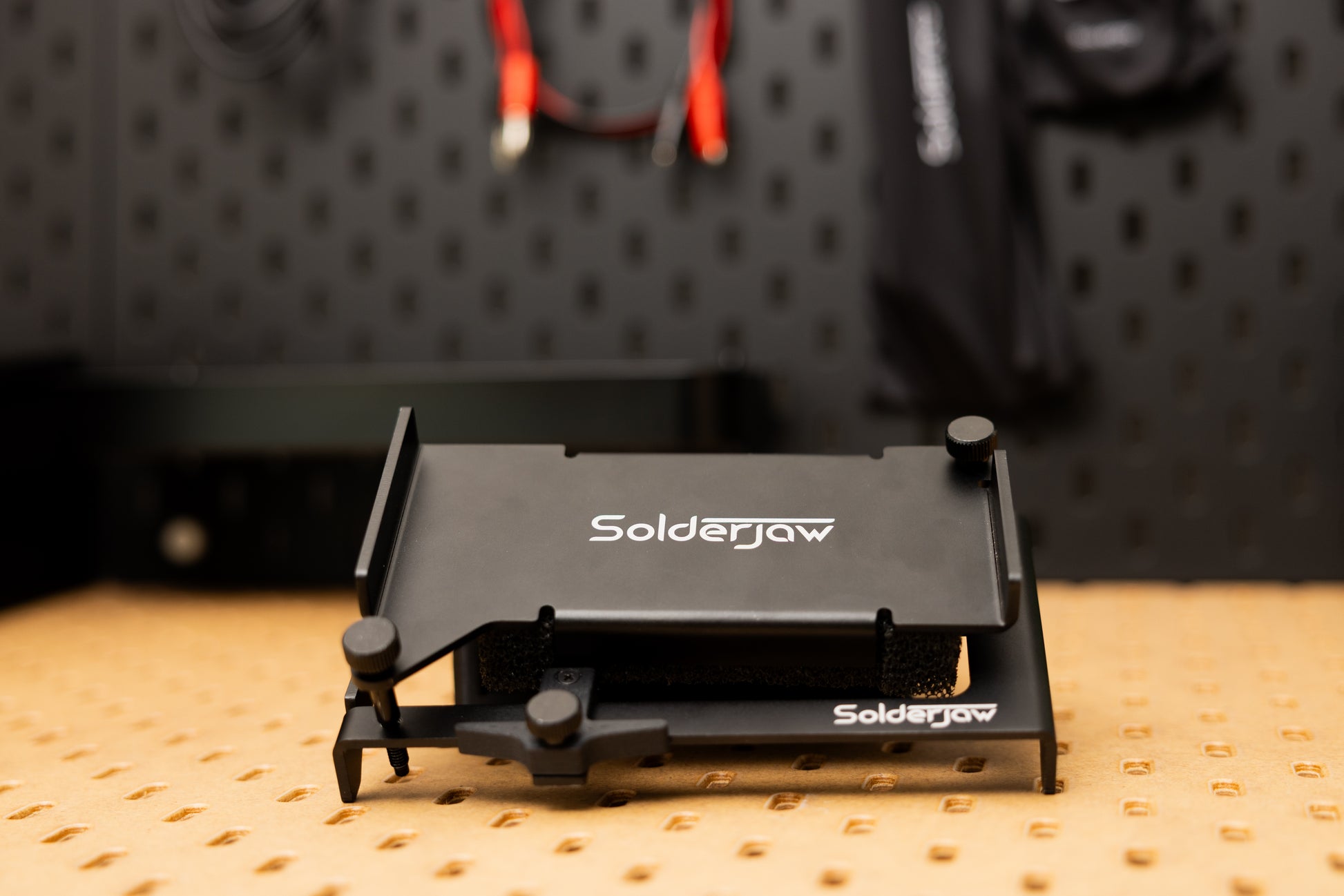

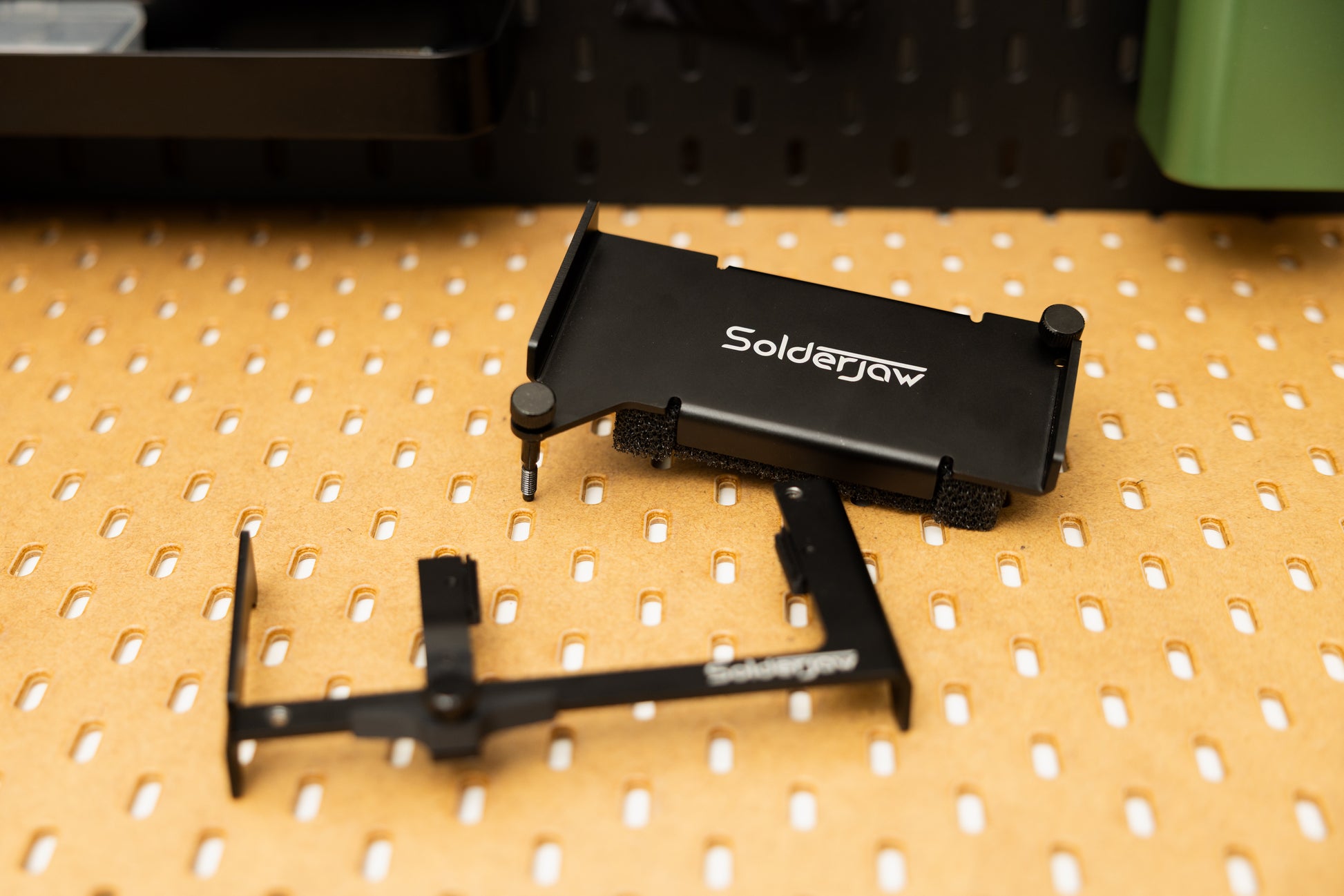

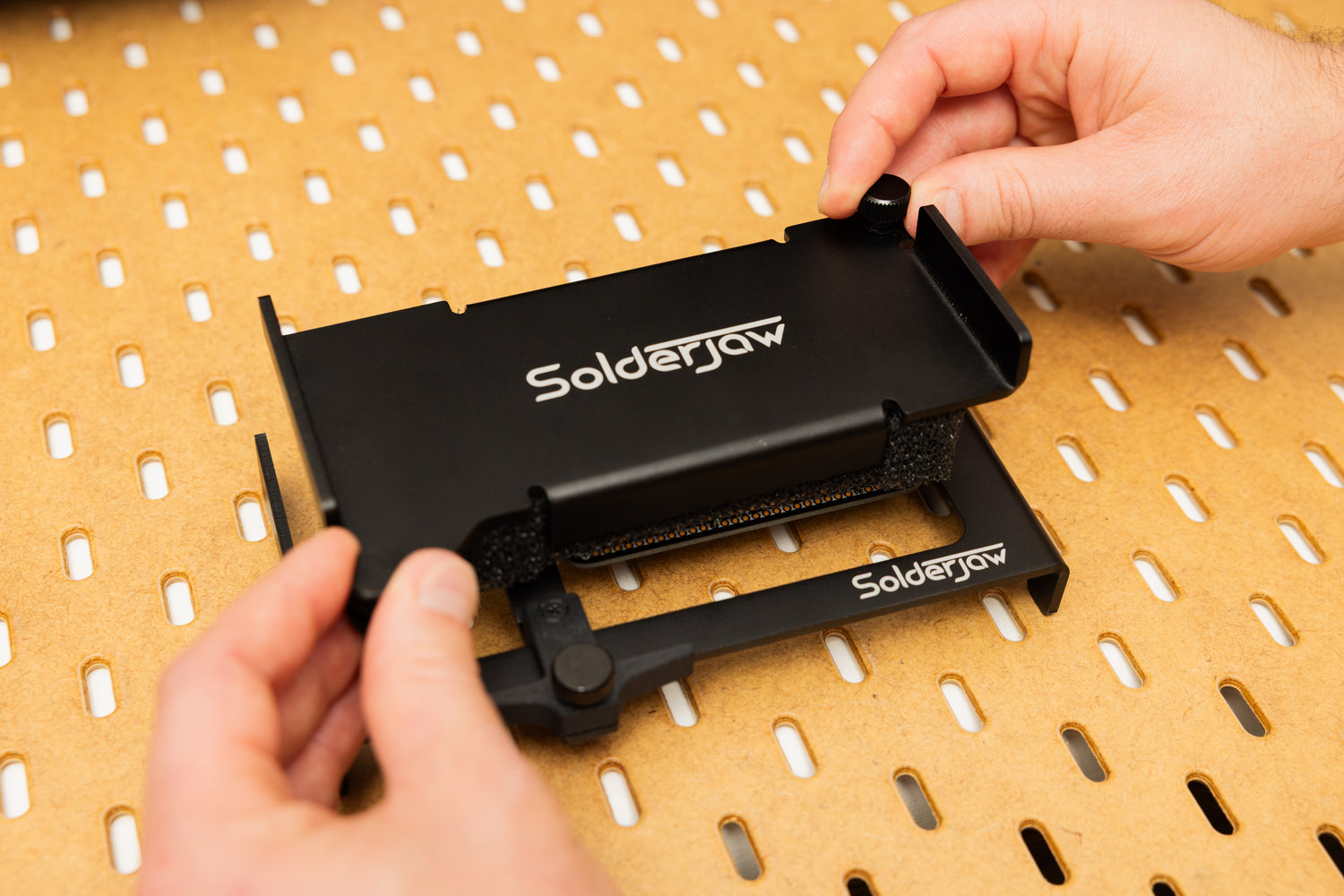

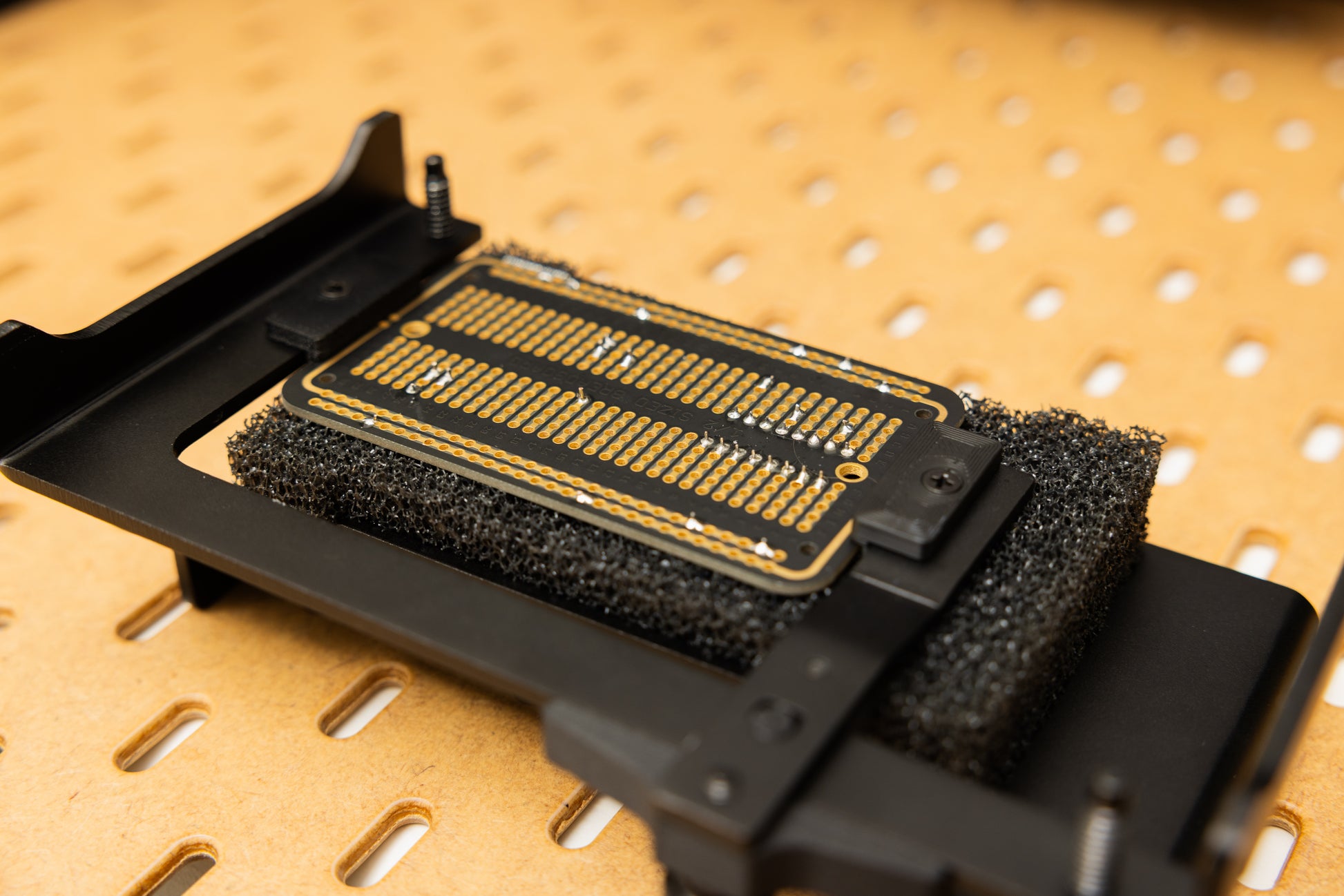

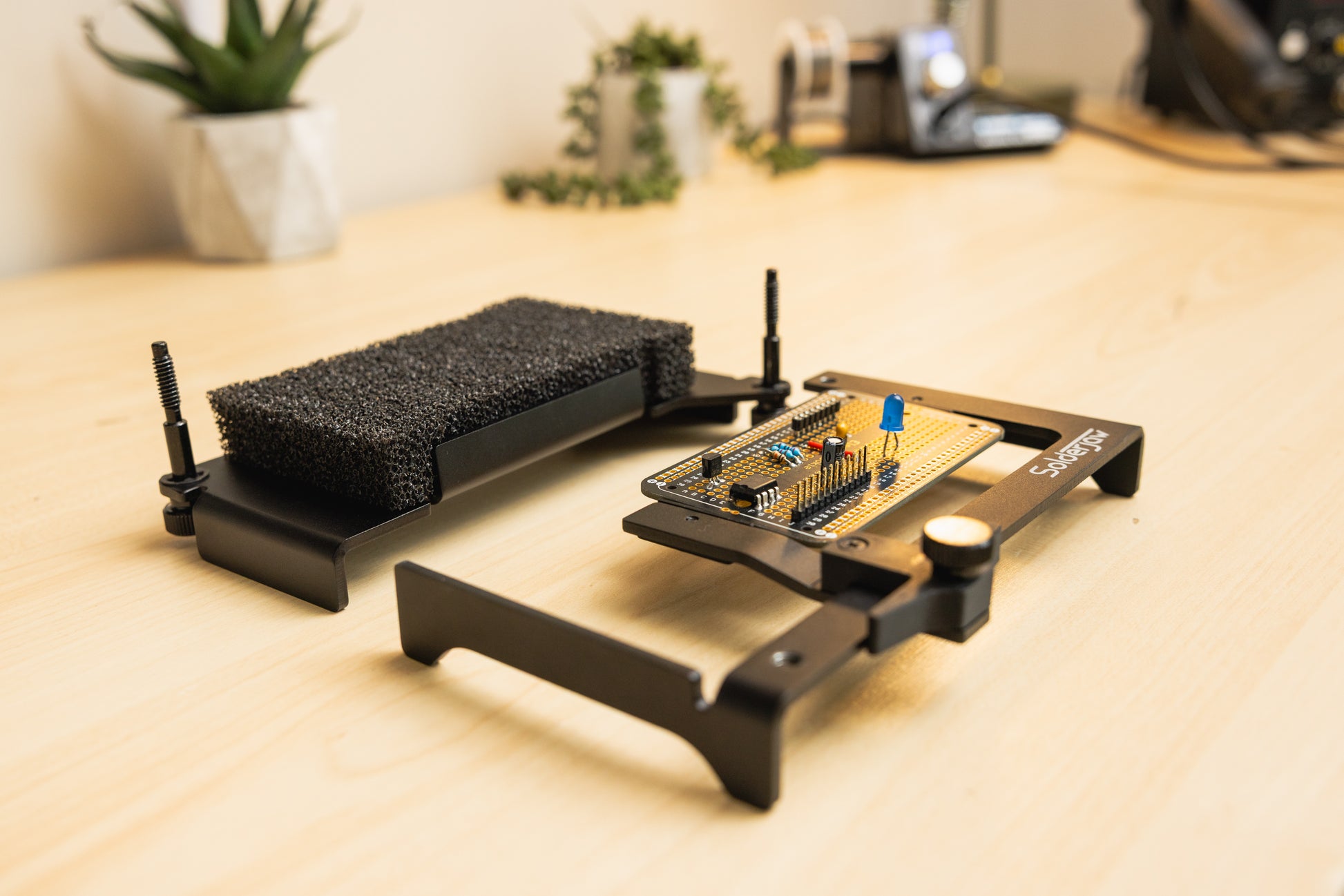

The CSJ-1 is a patent-pending design to solve the problem of holding one or more components in place while soldering. The device securely holds printed circuit boards (PCBs) and custom circuit boards. Using its conforming membrane, the top conforming plate conforms around any components on the board, securing them in place as the device is turned over for soldering.

Component Versatility

• Through-hole
• Surface mount
• IC's
• Pin headers
• Resistors
• etc.

The SolderJaw CSJ-1 adapts seamlessly to both through-hole and surface mount components, offering unparalleled versatility. Whether you're working on a solderable breadboard or a custom PCB, the CSJ-1's innovative design ensures a secure hold without the hassle of bulky vises or flimsy helping hand devices.

Board Compatibility

• 4.75 x 2.75 inch boards
• 1 inch tall components

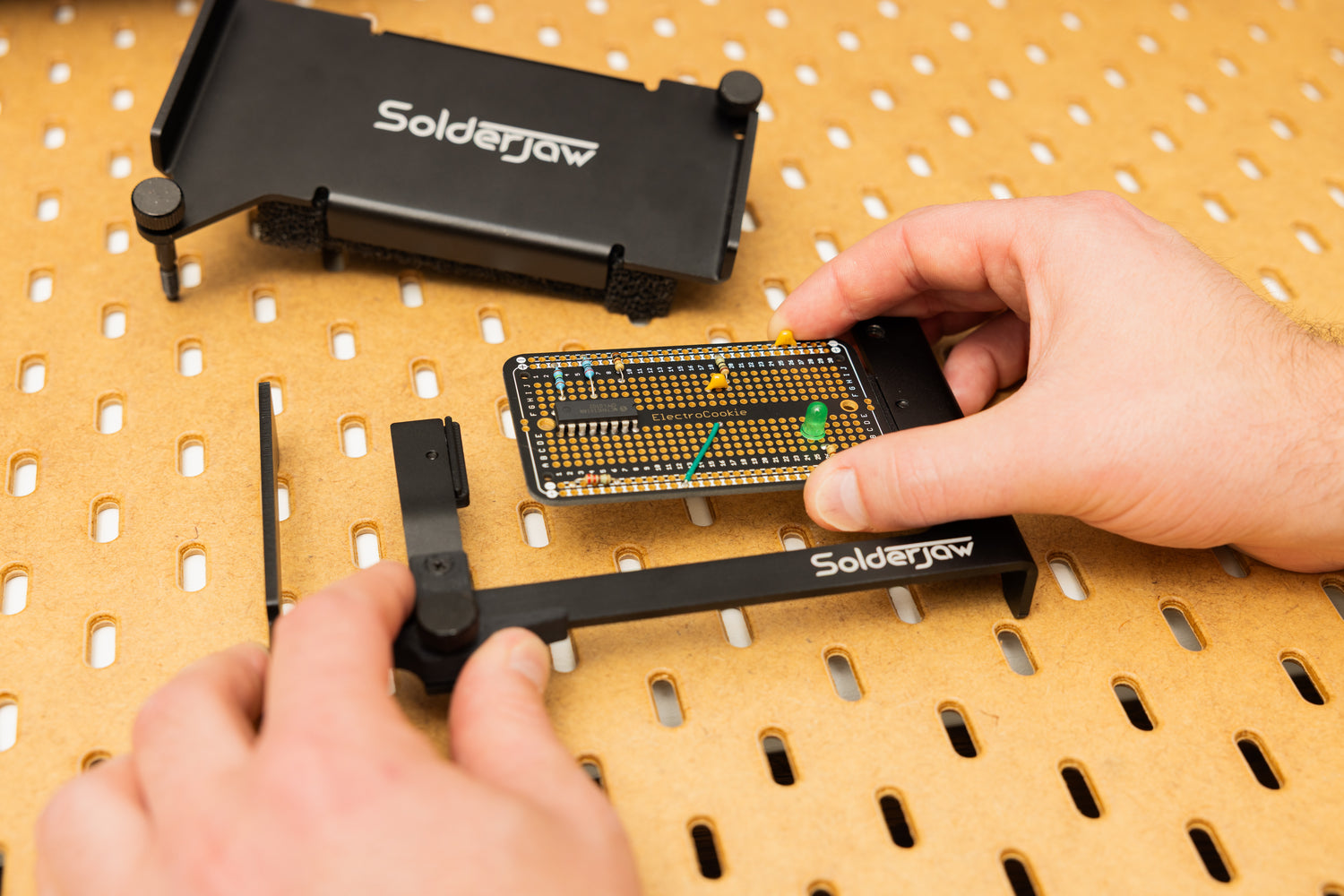

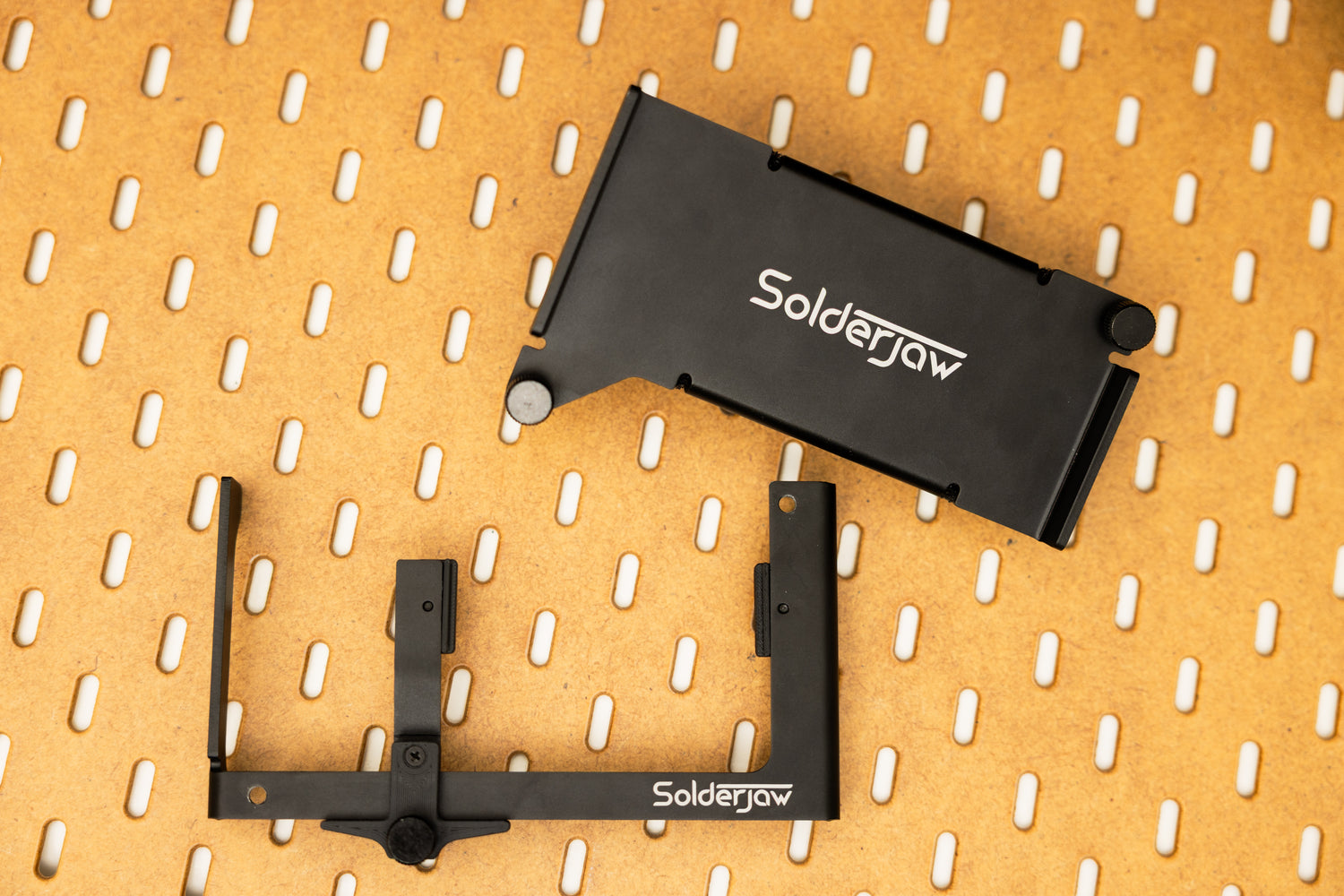

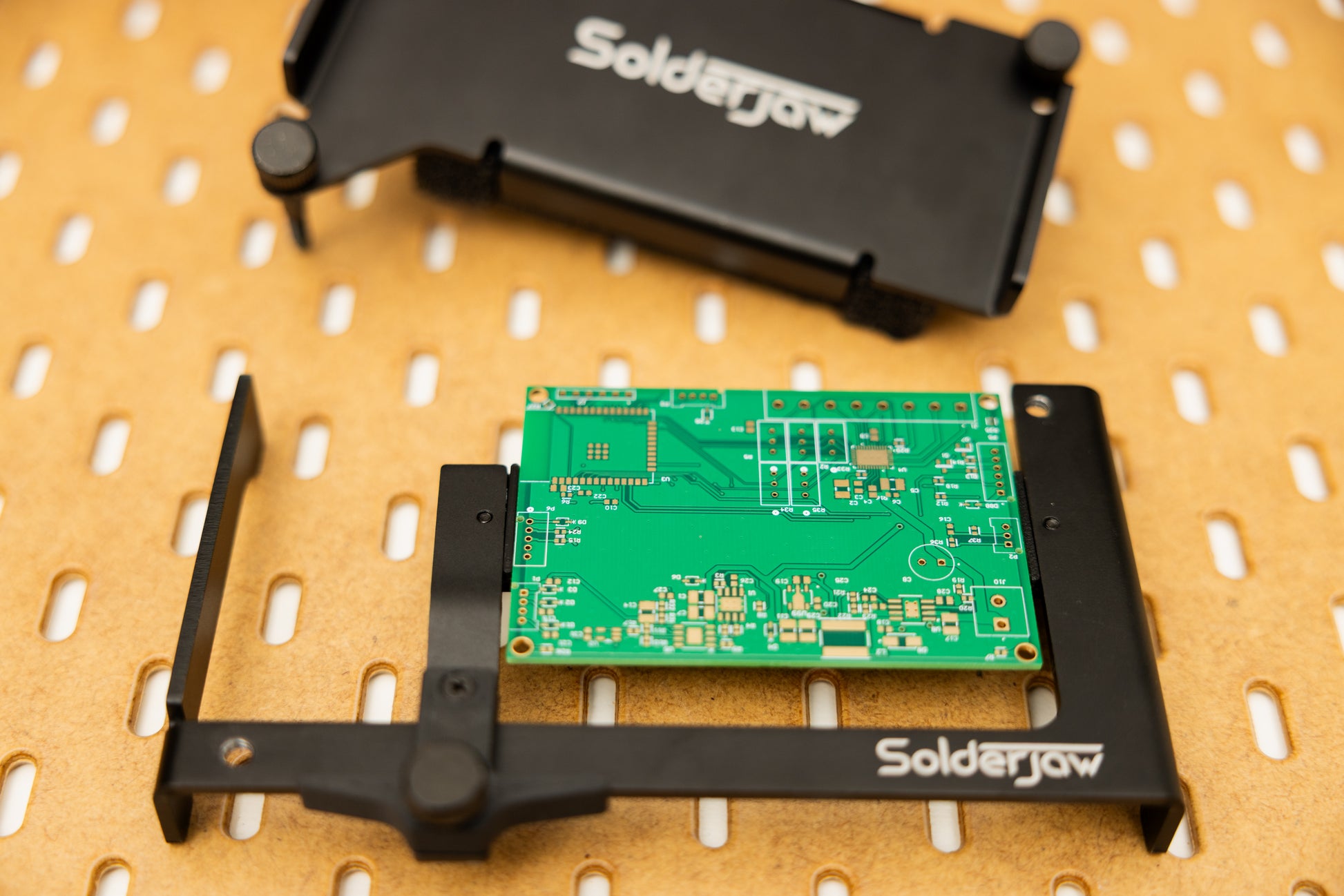

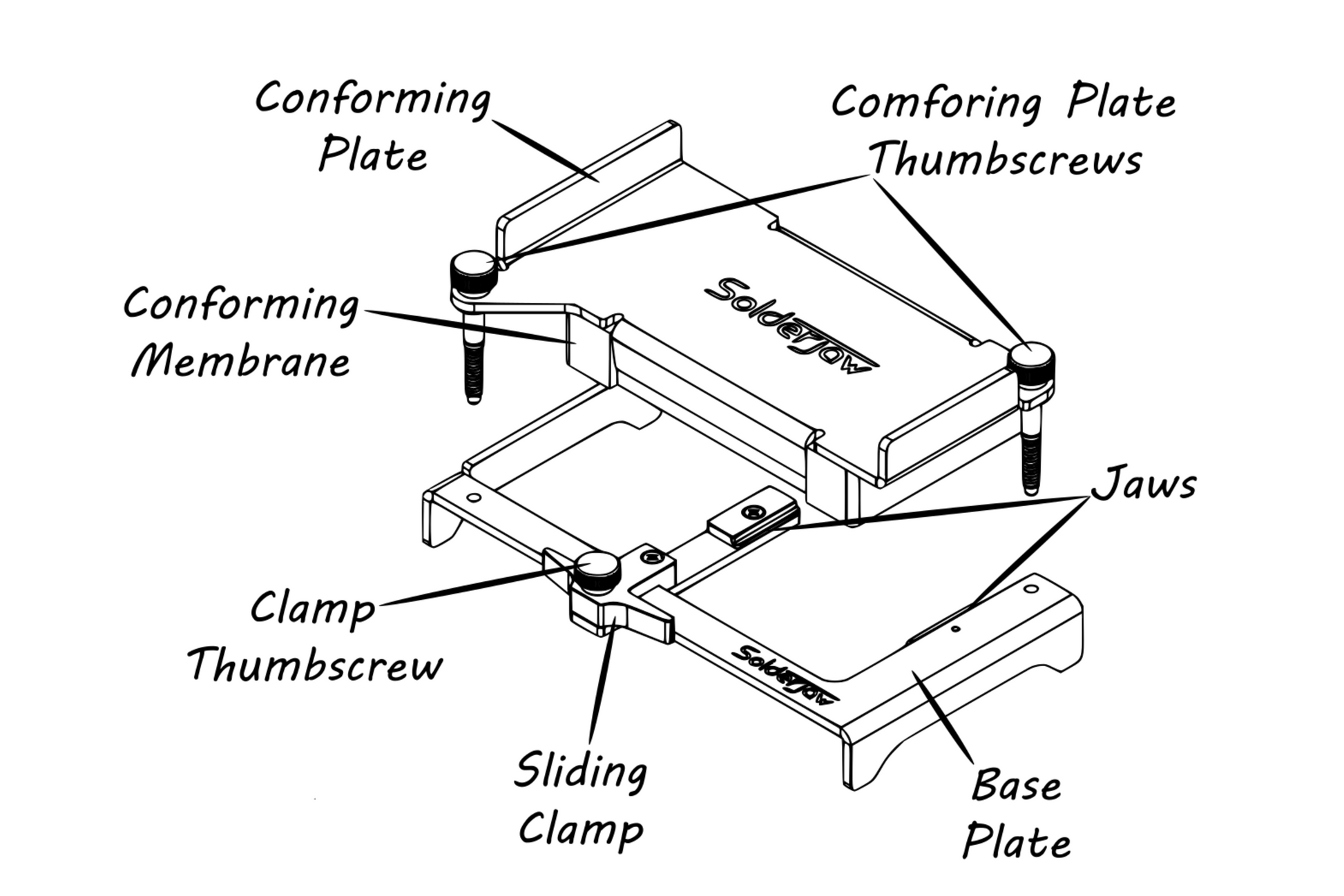

The base plate features a sliding clamp that securely holds boards measuring 4.75 inches long and 2.75 inches wide, accommodating most standard-sized PCB boards and solderable breadboards. The conforming membrane is 0.75 inches thick and can deform around comments that have 0.5 inches of height variation between them.

Built to Last

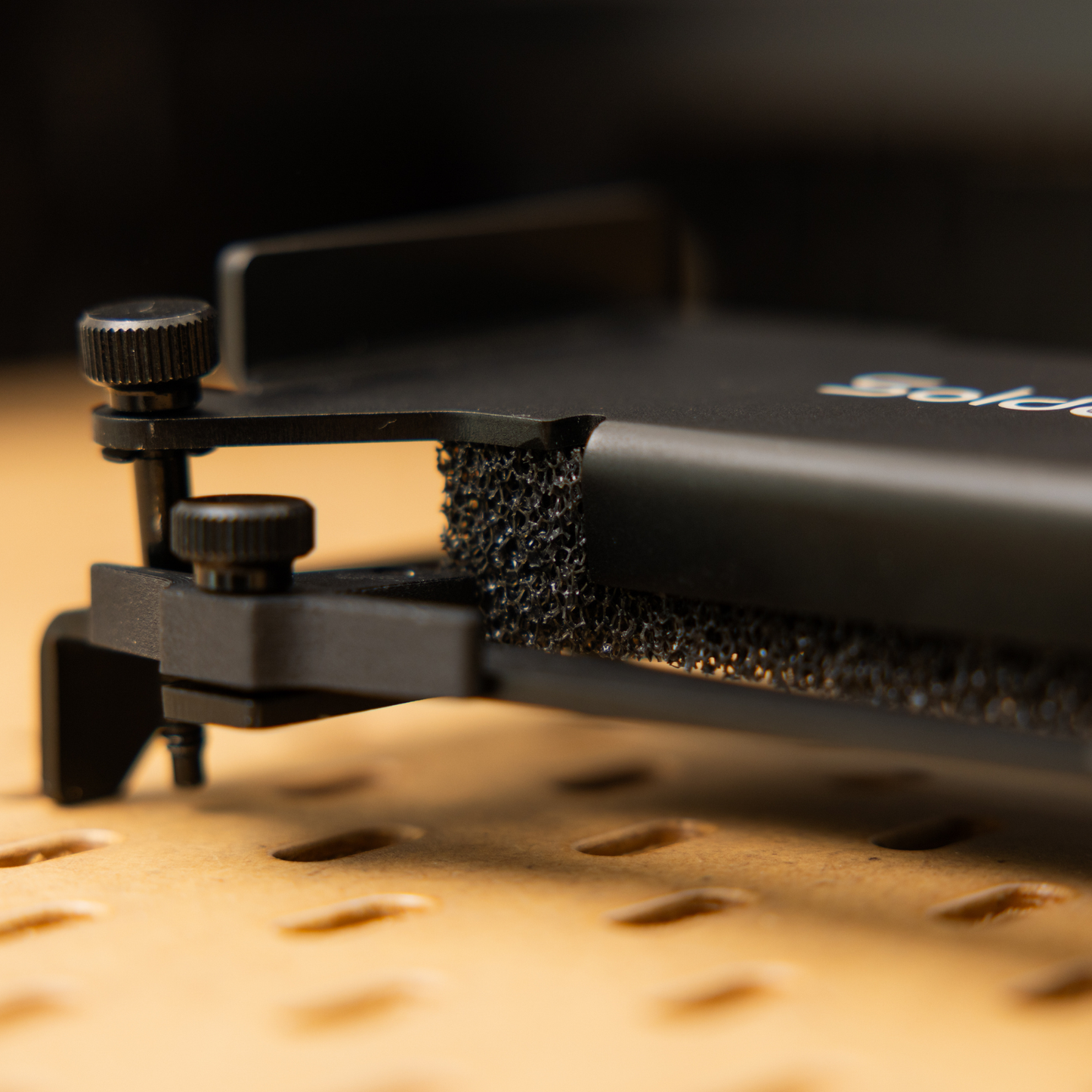

The CSJ-1 is primarily made from lightweight, scratch-resistant anodized 5052 aluminum with Type II anodization, finished in black. The sliding clamp and jaws are made from carbon fiber reinforced ASA, and the fasteners and thumb screw are made from black oxide steel.

The conformable membrane is made from a durable, high-temperature silicon to allow for continued use even when contacting heated components from soldering. The pads are easy to remove and replace, and are reversible, so holding comments securely is no longer a hassle.
